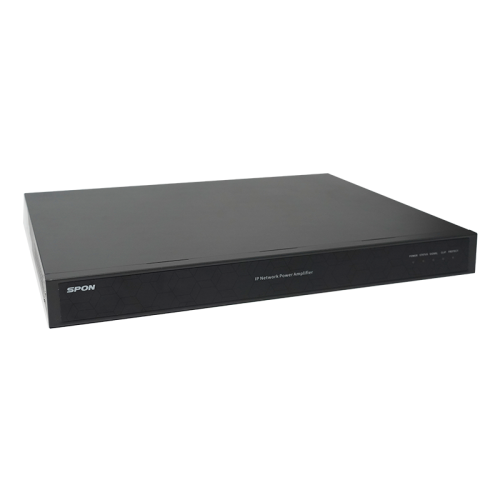

The Ultimate IP Amplifier for Powerful Performance.
| Datasheet | XC-9508P13 Datasheet |
|---|---|
| Interface | 1×RJ45 Ethernet Port, 1×Line Input (Balanced), 1×Line Input (Unbalanced – RCA Jack), 1×Mic Input (1/4" TS Jack), 1×Line Output (RCA Jack), 1×24V DC Relay Output, 1×Relay Input, 1×Relay Output, 1×Speaker Output (70V/100V), 1×Power Input |
| Model No. | XC-9508P13/XC-9508P26/XC-9508P36/XC-9508P50 |
| Dimensions | 440×300×44mm |
| Net Weight | 3.5 kg |
| Gross Weight | 4.75 kg |
| Manufacturer | SPON |
| Power Supply | AC 100V-240V 50/60Hz |
| Audio Encoding | MP3/PCM/ADPCM/G711.a/G711.m/G729 |
| Speaker Output | 70V/100V (Constant-Voltage) |
| Source category | PA System |
| Network Protocol | SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
| Packed Dimensions | 573×368×123 mm |
| Power Consumption | ≤160W/≤310W/≤420W/≤580W |
| Frequency Response | 130Hz-18kHz |
| Rated Power Output | 130W/260W/360W/500W |
| Source subcategory | Amplifier |
| Installation Manual | XC-9508 Installation Manual |
| Optional Accessories | IEC C13 Power Cord (US/EU/UK/AU) |
| Standard Accessories | 1×4-Pin Terminal Block Connector, 2×5-Pin Terminal Block Connector, 2×Rack Ear, 4×Rubber Foot, 1×Installation Manual |
| Temperature & Humidity | -10℃～+50℃, ≤90%RH (No Frost) |
| S/N (Signal-to-Noise) Ratio | 84dB |
| THD (Total Harmonic Distortion) | ≤0.5% at 1kHz, 1/2 rated output |
| Product Type | Amplificadores de línea |
| Potencia (W) | 130W/260W/360W/500W |
| Tecnologia | IP / SIP |
