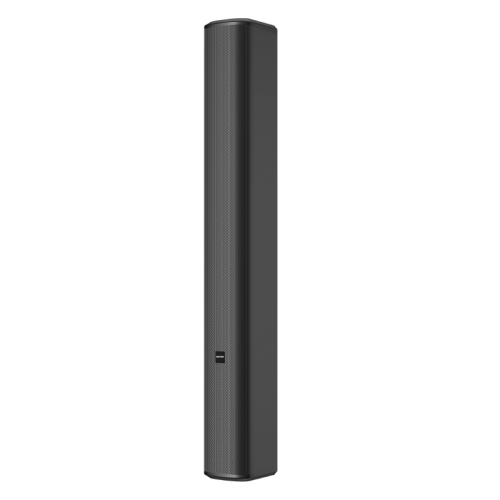

With its combination of sophisticated aesthetics, durable construction, and high-fidelity audio performance, the Array Column Speaker delivers both beauty and professional-grade sound, making it the ideal choice for integrators.
| Datasheet | SAP-L2504H_Datasheet |
|---|---|
| Impedance | 4Ω |
| Drive Units | 4×2.5" |
| Rated Power | 100W (400W, PEAK) |
| Manufacturer | SPON |
| Color Options | Black/Apple Gray/White |
| Mounting Holes | 2xM6 |
| Product Weight | 2.2kg |
| Grille Material | Metal mesh |
| Mounting Method | Adjustable angle mounting bracket or narrow-wall distance mounting bracket |
| Source category | Professional audio system |
| Enclosure Material | Aluminum alloy reinforced enclosure |
| Product Dimensions | 670(H)x80(W)x100(D)(mm) |
| Source subcategory | Speaker |
| Effective Frequency Range | 106Hz~20kHz |
| Characteristic Sensitivity Level (1m/1w) | 94dB |
| Product Type | Parlantes profesionales |
| Voltaje de linea | 4Ω |
| Potencia (W) | 100W (400W, PEAK) |
| Tipo de montaje | Pared, Rack |
| Material / Acabado | Aluminio |
